Motherboard MB6U419-0900 Series
Motherboard MB6U419-0900 Series
Motherboard MB6U419-0900 Series
Motherboard MB6U419-0900 Series
Motherboard MB6U419-0900 Series
Motherboard MB6U419-0900 Series

Motherboard MB6U419-0900 Series

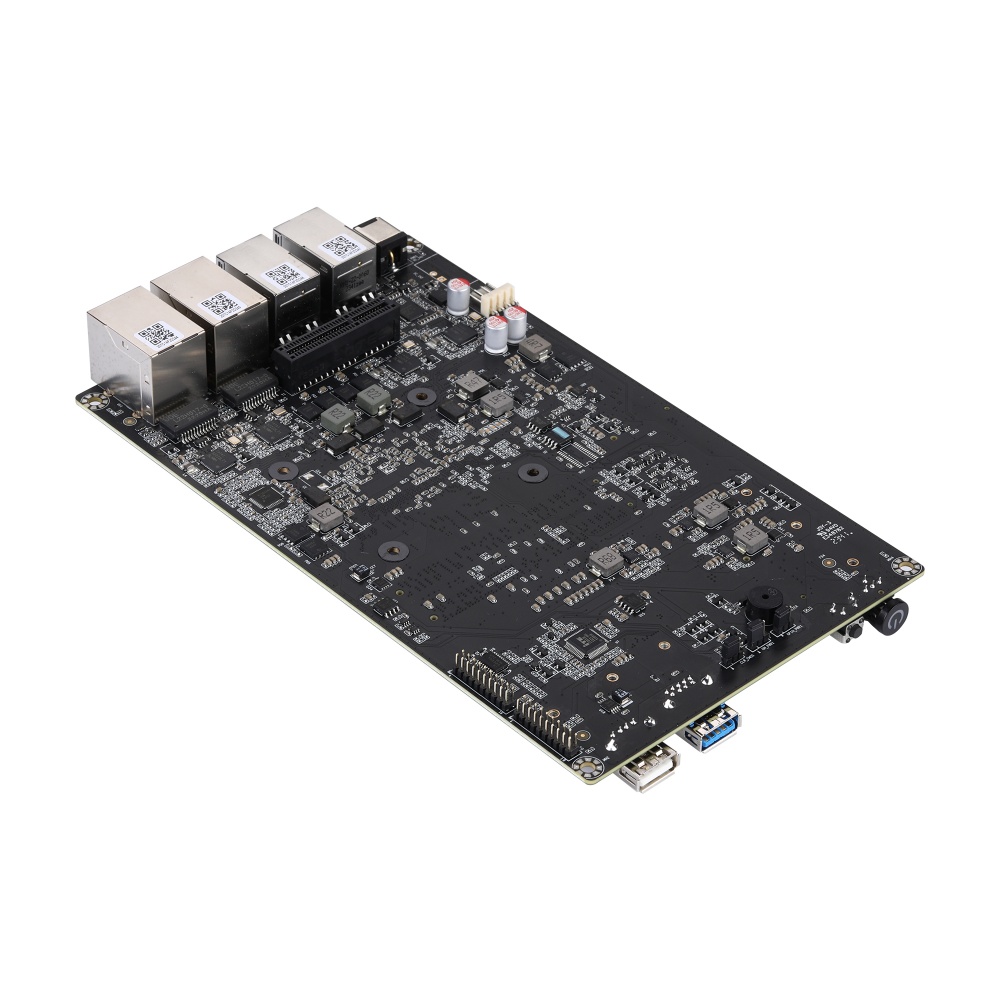

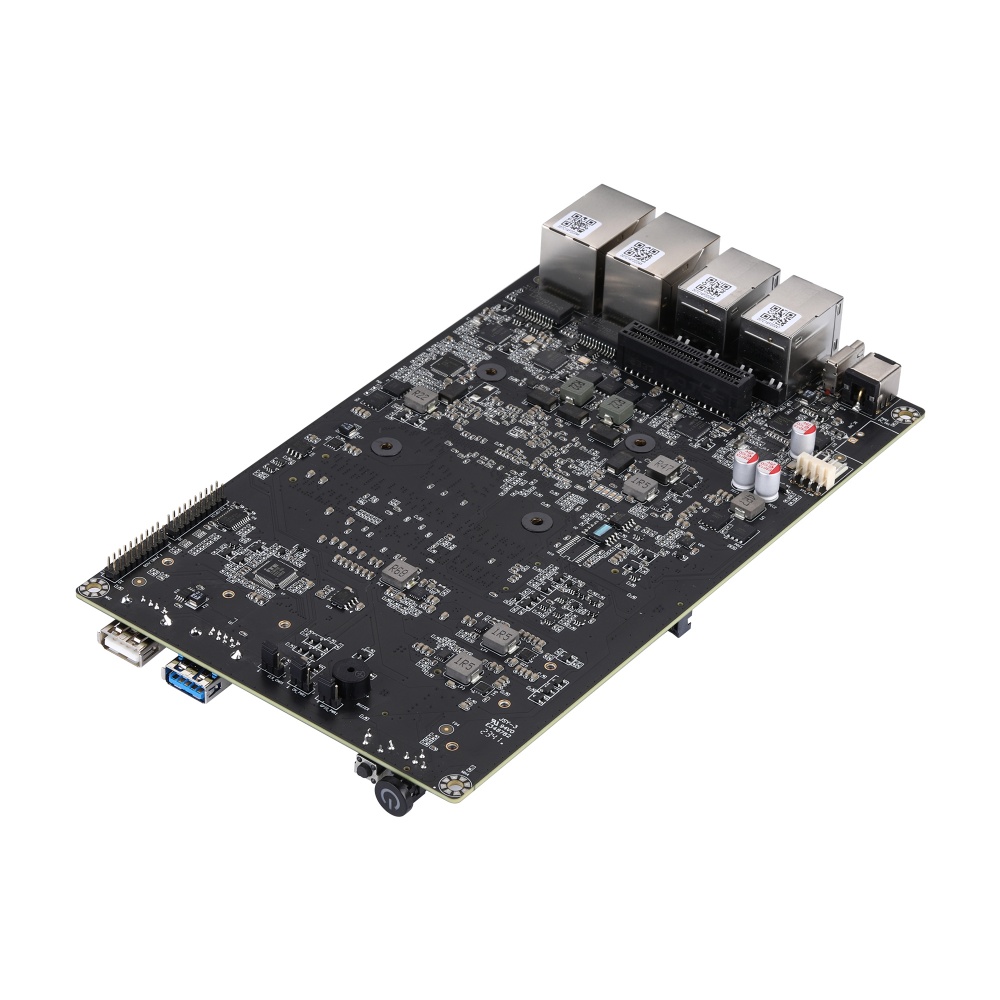

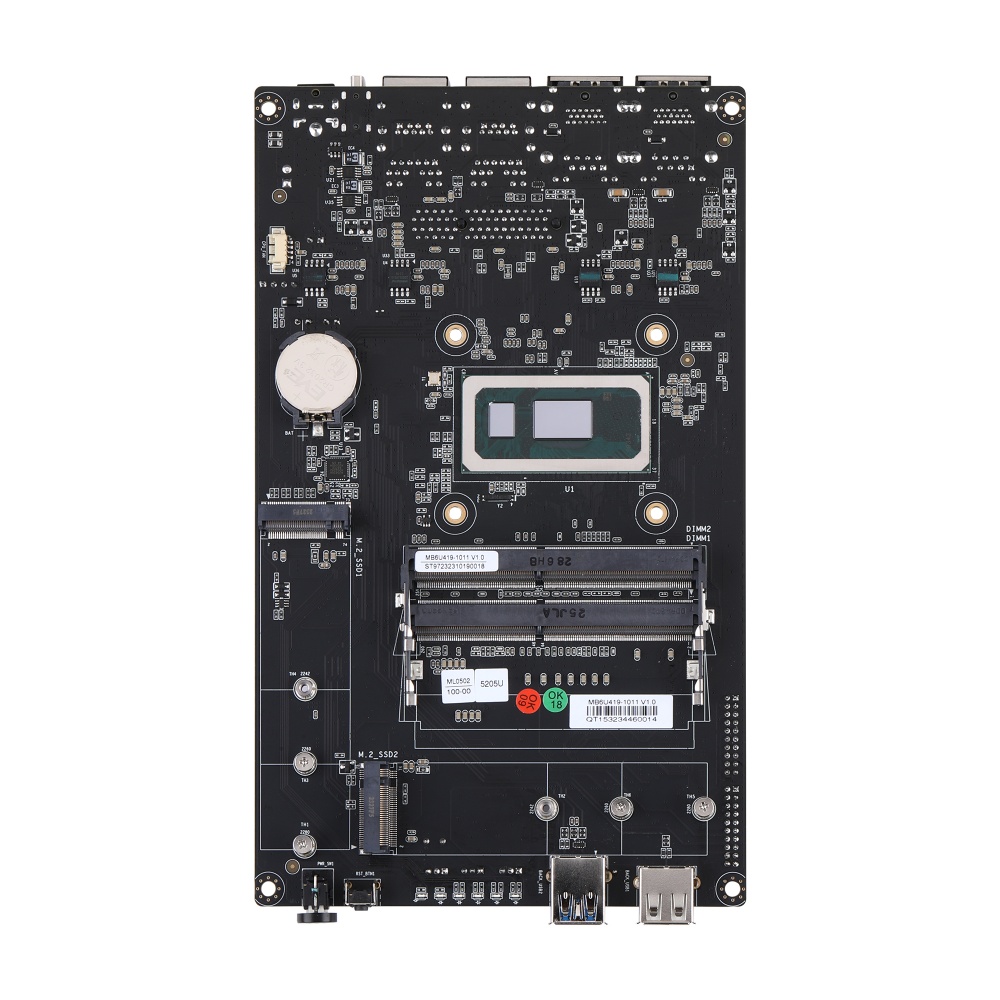

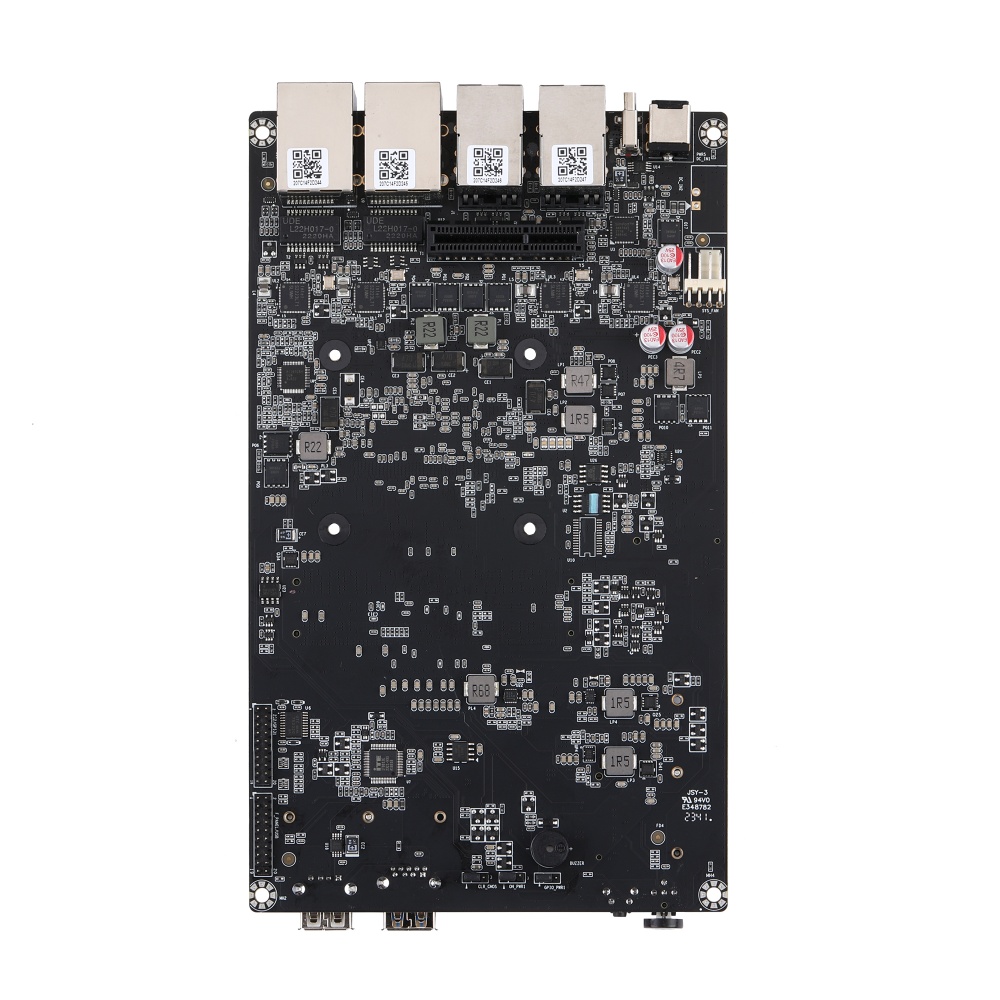

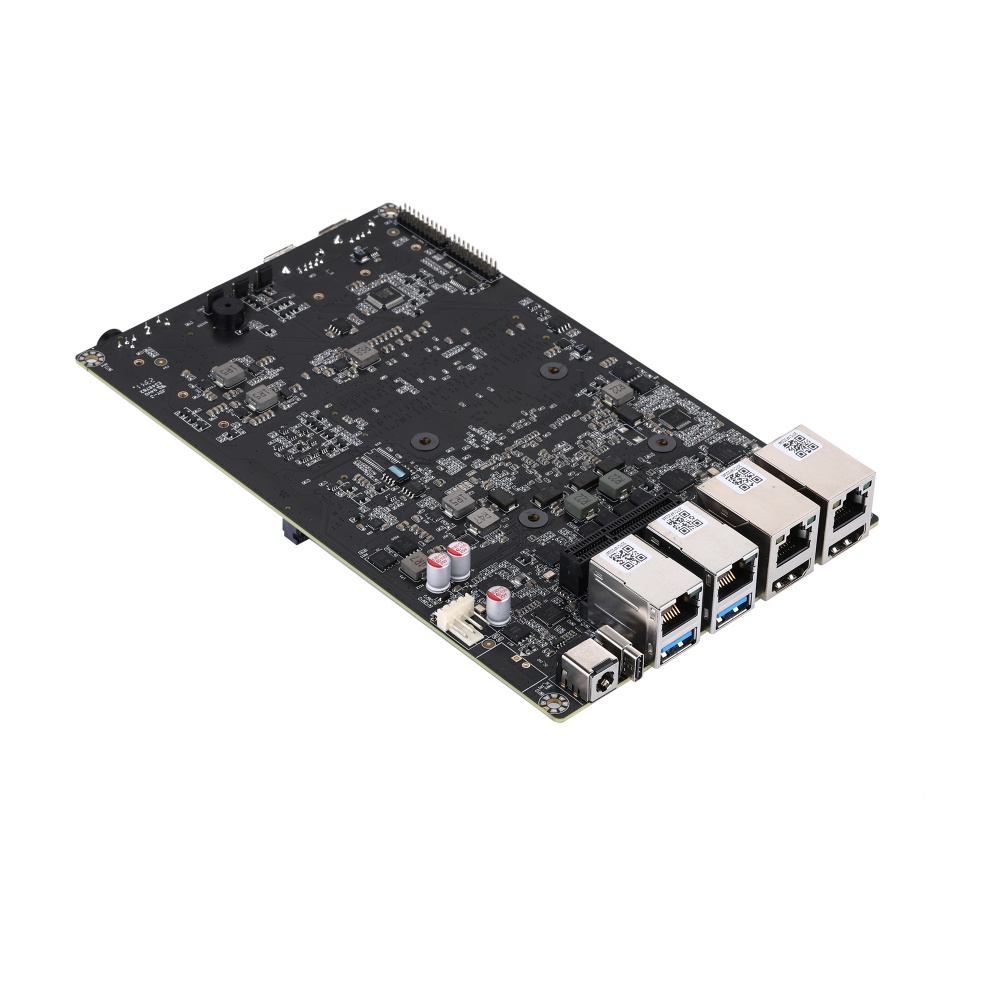

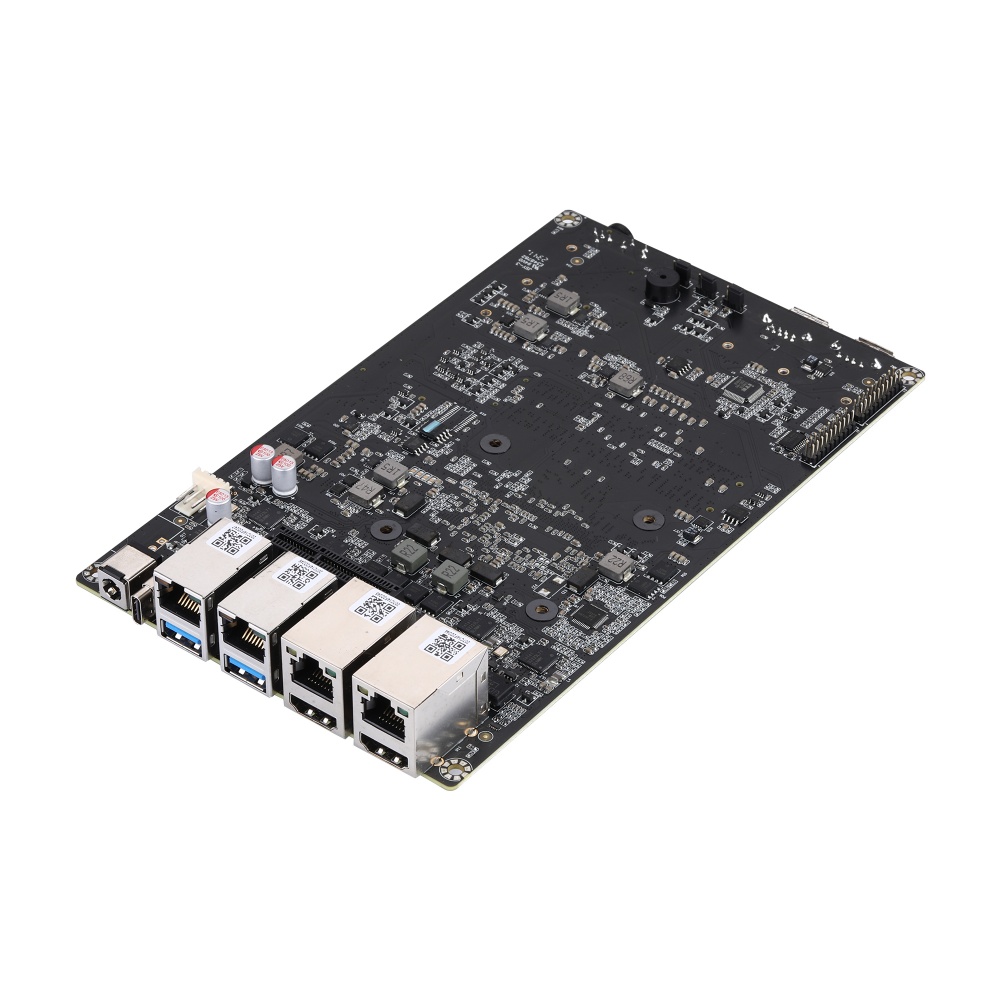

Mini PC motherboard with 4× SSD support, dual HDMI, 4× 2.5G LAN, 3× USB 3.0, Type-C, supports 8th–10th Gen Intel CPUs, ideal for NAS and storage servers.

Main Features

  • Intel 8th Whiskey Lake-U Processor

  • Intel 8th Coffee Lake-U Processor

  • Intel 10th Comet lake-U Processor

  • 2 × HDMI

  • 3 × USB 3.0, 1 × USB 2.0, 1 × Type C

  • 2 × M.2

  • 4 × Intel I225-V/I226-V 2.5 Gigabit LAN

Processor System
Dimension120 × 200mm
CPUIntel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
ChipsetBy CPU
BIOSUEFI
Expansion Slot
M.21 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 4)
M.21 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)
Memory
TechnologyDDR4 2133/2400MHz SDRAM
Max.64GB
Socket2 × SO-DIMMs
Graphics
ControllerBy CPU
VRAMShared Memory
Display Port0
HDMI2 (Support HDMI 1.4a)
Multi DisplayYes
Ethernet
Interface100/1000/2500Mbps
Controller4 × Intel I225-V/I226-V 2.5 Gigabit LAN
Connector4 × RJ-45
Audio
ControllerNo
SATA
Max. Data Transfer RateSATA 3.0 (6.0Gb/S)
Accessories
AccessoriesNo
Real I/O
DC-IN1
Type C1, USB 3.0 and Display Port
HDMI2
Ethernet4
USB2 × USB 3.0
Front I/O
Power Button1 × Power Button, 1 × Reset Button
LED1 × Power LED, 1 × HDD LED
LED1 × LAN LED
USB1 × USB 3.0, 1 × USB 2.0
Internal Connector
TPM1 (Option)
PCIe1, PCIe slot
(Type: X4, PCIe 3.0 × 1, SATA 3.0 × 2)
Serial Port1, 2 × 5Pin, Pitch 2.0mm (Option)
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
GPIO Power SelectYes, 1 × 3Pin, Pitch 2.0mm
USB Header1, 2 × 5Pin, Pitch 2.0mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm
Power Header1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin
(Option)
Watchdog Timer
OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min
Power Requirement
Input PWR12V/19V DC in, 5.5mm/2.5mm
Environment
Operating Temperature0-50 ℃
OS Support
OSWindows 10, Linux

Packing List

NO.CategoryQuantityRemark
1Motherboard1
2HDD cable1
3Radiator1Option
4Fan1Option
5Serial cableSeveral Depending on the model

Ordering and Specifications Information

Quick Order Model: MB6U419-0912

Ordering CodeCode NameProcessor TypeProcessor Number# of Cores# of Threads Base FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
MB6U419-0912Whiskey LakeCeleron4305U222.2GHz/2MIntel UHD Graphics15W
MB6U419-0921Whiskey LakePentium5405U242.3GHz/2MIntel UHD Graphics15W
MB6U419-0931Whiskey LakeCore i38145U242.1GHz3.9GHz4MIntel UHD Graphics15W
MB6U419-0951Whiskey LakeCore i58265U481.6GHz3.9GHz6MIntel UHD Graphics15W
MB6U419-0971Whiskey LakeCore i78565U481.8GHz4.6GHz8MIntel UHD Graphics15W
MB6U419-0952Coffee LakeCore i58260U481.6GHz3.9GHz6MIntel UHD Graphics 62015W
MB6U419-1011Comet LakeCeleron5205U221.9GHz/2MIntel UHD Graphics15W
MB6U419-1012Comet LakeCeleron5305U222.3GHz/2MIntel UHD Graphics15W
MB6U419-1021Comet LakePentium6405U242.4GHz/2MIntel UHD Graphics15W
MB6U419-1031Comet LakeCore i310110U242.1GHz4.1GHz4MIntel UHD Graphics15W
MB6U419-1051Comet LakeCore i510210U481.6GHz4.2GHz6MIntel UHD Graphics15W
MB6U419-1071Comet LakeCore i710610U481.8GHz4.9GHz8MIntel UHD Graphics15W
MB6U419-1072Comet LakeCore i710810U6121.1GHz4.9GHz12MIntel UHD Graphics15W
MB6U419-1073Comet LakeCore i710710U6121.1GHz4.7GHz12MIntel UHD Graphics15W
